Reliable CNC Touch Probe Manufacturer

Founded in 2016, Foshan Qidu Intelligent Technology Co., Ltd (with brand name of Qidu Metrology), is the leading tool setter manufacturer and touch probe manufacturer in China. Our primary focus lies in the design, development, manufacturing, and sales of touch probes and tool setters , playing a crucial role in ensuring accuracy, efficiency, and reliability within CNC machining workflows.

Beyond the core offerings, Qidu understands the diverse needs of the CNC industry. We offer a comprehensive range of CNC machine tool accessories, catering to various applications and customer requirements. This commitment to providing a complete solution sets Qidu apart from competitors and allows customers to source all their essential CNC tool needs from a single, trusted source.

learn more

Hot Sale Products of Qidu

Types of Products We Made

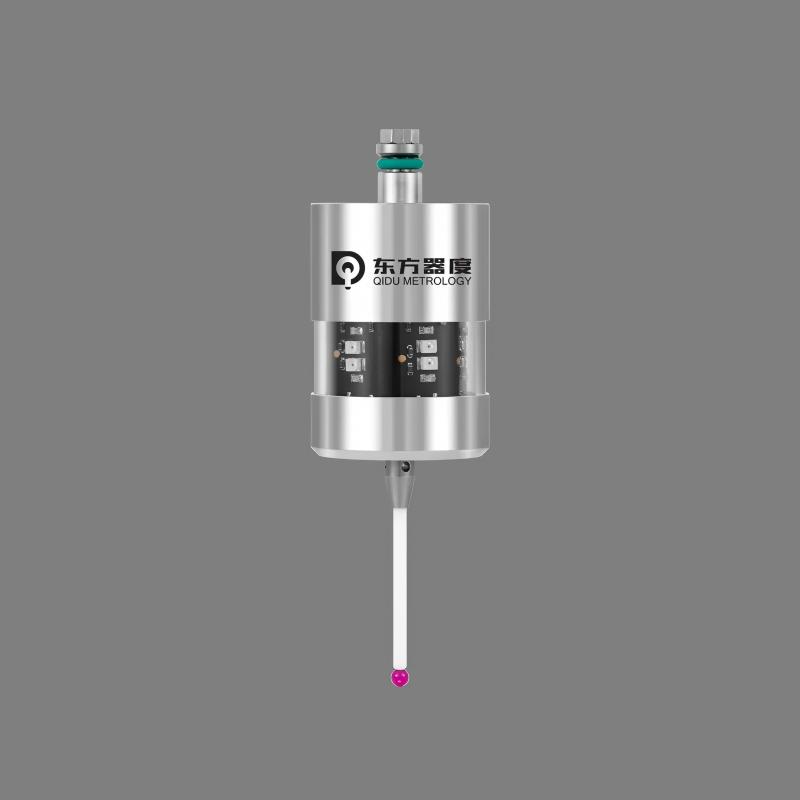

Touch Probe

Touch Probe

Touch probes are invaluable tools in modern CNC machining. They significantly enhance accuracy, efficiency, and productivity by automating the measurement process and minimizing human error.

获取免费报价
Tool Setter

Tool Setter

Tool setters are essential components of modern CNC machining centers. They significantly enhance the accuracy, efficiency, and productivity of the machining process by automating tool measurements and minimizing human error.

获取免费报价
Laser Tool Setter Series

Laser Tool Setter Series

Laser tool setter series represent a significant advancement in CNC machining technology. By providing fast, accurate, and non-contact tool measurements, these systems enhance efficiency, improve part quality, and contribute to a more productive and cost-effective manufacturing process.

获取免费报价
Tool Setting Arm Series

Tool Setting Arm Series

Tool setting arm series play a vital role in modern CNC machining by providing a robust and reliable platform for automated measurements. They contribute to improved accuracy, reduced setup times, and increased productivity in the manufacturing process.

get a free qoute

Why Choose Qidu as CNC Touch Probes and Tool Setters Supplier

We’re committed to supplying CNC Touch Probes and Tool Setters that are essential for factory automation. More than 250 manufacturers of machine tools and equipment, spread across 50 countries around the world, use our touch probes and tool setters. This widespread adoption has firmly established our leading position in the global market.

precise

Accomplishing high precise positioning down to the micron level enhances productivity through the prevention of machining errors and operational interruptions.

capability

Except our existing products, we boast the capability to meticulously design and manufacture bespoke products that are perfectly tailored to meet your specific requirements and preferences.

low_price

We provide precision touch probes at low price. Achieving cost savings involves substituting pricey probes with amplifiers or probes sourced from locations beyond China.

worldwide

Qidu’s probes are currently deployed in 50 nations worldwide and are available for purchase via our online platform or through authorized distributors located in every country.

免费报价

Application Industry of CNC Touch Probe & Tool Setter

Qidu Metrology’s products have seen remarkable sales figures, are widely used, and have won over customers. In the following section, we’ll present a range of product images. These products are integrated with different machine tool brands and have been applied in a variety of industry scenarios.

precision parts machining with rotary table

Precision Parts Machining

Touch probe application in mobile phone house machining

Mobile Phone Accessories Mold

CNC touch probe application on turret and grinder

On Turret and Grinder

Tool Setting in Machining Center

Tool Setting in Machining Center

联系我们

Why Use a Probe?

Probing is essential when ensuring precision throughout machining processes. As a manufacturer, maintaining consistent product quality and maximising output is vital. That is why implementing quality control processes such as probing are incredibly beneficial.

Ultra-low trigger force

Low Trigger Force

This ultra – low trigger force feature is specifically designed to handle sensitive components with the utmost care. It ensures that the inspection process, which is crucial for maintaining quality control, doesn’t compromise the integrity of the workpiece.

Unparalleled 3D Precision

Unparalleled 3D Precision

Our technology offers an unprecedented level of 3D accuracy. Even when tasked with measuring the most intricate 3D shapes and sinuous contours, it delivers submicron performance that stands unrivaled in the field.

Sturdy and Ingeniously Engineered

Sturdy and Ingeniously Engineered

This product is crafted with a high level of robustness in mind. Its design is the result of meticulous engineering, ensuring that it can withstand the most challenging conditions.

Exacting Precision in Measurement

Exacting Precision in Measurement

Our technology is engineered to eliminate guesswork and ensure that every measurement is spot – on. This not only streamlines the machining process but also significantly reduces the likelihood of costly errors and rework.

获取免费报价

Advantages of Employing Our Machine Tool Probes

Optimal Mechanical Structure Design

(1) Our machine tool probe utilizes a well-established technology known as the kinematic resistive principle, which enables it to operate stably over extended periods.
(2) At a standard probe styli length of 50mm and a speed of 600mm/min, our machine tool probe is capable of achieving highly precise measurements.
(3) The balls and rods within the probe have undergone a special manufacturing process. This unique process is designed to enhance the durability of the probe, ensuring a lifespan of up to 10 million operations.
(4) We have independently developed an innovative micro-swing autonomous reset technology. This technology has been specifically engineered to address common issues related to poor stability and inconsistent repeatability that are often encountered in similar products.
learn more
Tool Probes
Dependable Signal Transmission

Dependable Signal Transmission

(1) We employ coded signals with optimized optical communication technology, ensuring that the signal transmission is stable, the response speed is fast, and there is no signal loss. This advanced technology enhances the overall performance of the probe by guaranteeing reliable data transfer, allowing for seamless communication between the probe and the control system.
(2) Our probe utilizes dual-channel technology, which, through remote control frequency adjustment, perfectly solves the issue of mutual interference among infrared probes prevalent in the industry. This represents an innovative solution within the probing industry, setting our product apart from competitors and providing enhanced functionality and reliability. It enables multiple probes to operate simultaneously without interfering with each other, thus improving operational efficiency and measurement accuracy.
免费报价

Simple Installation

(1) Traditionally, the installation of the probe receiver has been a cumbersome task, often requiring the drilling of holes in the machine tool for proper fixation. This conventional method can be time-consuming and may pose challenges, especially in situations where modifications to the machine tool are not desired.
(2) However, we have designed a magnetic mounting base that simplifies the installation process. This innovative base allows the receiver to be easily mounted onto it, and then the entire assembly can be attached to the sheet metal of the machine tool. By using this magnetic mounting base, we significantly reduce the installation difficulty, saving time and effort while ensuring a secure and stable installation without the need for drilling holes, thus making the installation process more user-friendly and convenient.
免费报价
Simple Installation

Our Factory

factory

factory

factory

factory

factory

factory

factory

factory

factory

factory

factory

factory

其他客户对我们的评价

flatsome 的整体使用非常非常有用。它几乎不缺任何东西！我很喜欢它，并创建了我的第一个网站 Punsteronline.com！最棒的是，flatsome 可以免费更新，非常棒！(支持也非常棒！）。

马克-詹斯 / 在 Facebook 上

这是一个非常棒的主题。你认为在下一个版本中，你是否可以尝试使用多国语言。因为我对这个主题没有什么不好的评价。万分感谢！

马克-詹斯 / 在 Facebook 上

flatsome 的整体使用非常非常有用。它几乎不缺任何东西！我很喜欢它，并创建了我的第一个网站 Punsteronline.com！最棒的是，flatsome 可以免费更新，非常棒！(支持也非常棒！）。

马克-詹斯 / 在 Facebook 上

这是一个非常棒的主题。你认为在下一个版本中，你是否可以尝试使用多国语言。因为我对这个主题没有什么不好的评价。万分感谢！

马克-詹斯 / 在 Facebook 上

我们的合作伙伴

xiaomi

xiaomi

partner

partner

partner

partner

partner

partner

huawei

huawei

partner

partner

partner

partner

BYD

BYD

oppo

oppo

准备好获取完美产品了吗？

联系我们获取免费咨询

Touch Probe FAQs

In the machining industry, touch probes play a crucial role in accurately assessing workpieces. They rely on tactile measurement techniques to precisely document various aspects of workpieces. This includes capturing fundamental dimensions such as length, width, and height. Additionally, touch probes are adept at determining form elements like straightness, which gauges how perfectly straight a surface or edge is; flatness, measuring the evenness of a planar surface; roundness, evaluating the circularity of an object; and cylindricity, which assesses how closely a cylindrical shape adheres to the ideal form.
Position elements are also within the touch probe’s scope. It can measure parallelism, indicating how parallel two surfaces or axes are; squareness, determining the perpendicularity between features; the angle of inclination, which defines the slant or tilt of a part; and symmetry, evaluating the balance of a workpiece around a central axis or plane.
The process of contact measurement is quite straightforward yet highly precise. A small ruby ball, attached to the probe, makes contact with the workpiece. This contact is made with a carefully predefined force, ensuring consistent and accurate readings. When the stylus connected to the ruby ball is deflected during this contact, a remarkable internal mechanism within the touch probe is activated.
Inside the probe, there’s an innovative, wear – free optoelectronic system. As the stylus moves, a precision pin is displaced into a light barrier. This simple yet ingenious interaction generates a switching signal. This signal serves as the trigger for recording the measured value, allowing for highly accurate documentation of the workpiece’s characteristics.
When stacked against numerous other touch probes in the market, our touch probe, equipped with a multidirectional optoelectronic measuring mechanism, stands out prominently. A key differentiator is that it doesn’t yield varying measuring results, regardless of the direction from which it probes the workpiece.
The moment the measuring insert makes contact with the workpiece, an internal process is set in motion. Inside the probe, a miniature light barrier gets shaded. This non – contact switching principle isn’t just innovative; it’s also wear – free. As a result, it enables a remarkably higher measuring speed compared to similar probes on the market.
At Qidu, we’ve been steadfast in our approach. Our touch probes are designed with a singular focus: to achieve uniform, direction – independent probing characteristics. This unwavering commitment has allowed us to create touch probes that offer consistent, reliable, and high – speed measurements across all applications.
A touch probe featuring a bidirectional measuring mechanism exhibits distinct characteristics. It can be deflected either along the Z – axis or within a structurally pre – defined X/Y plane simply by adjusting the orientation of the spindle. This unique design is particularly advantageous when it comes to dealing with the coolant film on the workpiece.
Unlike other probes, the bidirectional measuring mechanism effectively prevents the generation of a premature switching signal upon contact with the coolant film. This crucial feature enables the touch probe to achieve impressive performance metrics. It can operate at measuring speeds of up to 5 m/min, reach accelerations of up to 5 g, and maintain a repeatability of less than 1 µm. These capabilities set it apart in the realm of touch probes, offering enhanced precision and efficiency in measurement processes.
Qidu touch probes are primarily utilized for in-process measurement of workpieces during the production of highly machined precision components. These touch probes are not only fast but also highly reliable. They are capable of performing accurate measurements directly on the workpiece while it remains in its original clamping position within the machine room.
This capability brings about entirely new opportunities in various fields. It has a significant impact on general mechanical engineering, tool and mould making, as well as series production. Moreover, they are suitable for workpiece and tool measurement tasks in turning, grinding, and milling centres, and can handle special measurement assignments with ease.
The concept of in-process measurement is a key advantage. It implies that the workpiece does not need to be unclamped for measurement using the touch probe. Consequently, if any rework is necessary, it can be carried out without the need to remove the workpiece from its clamping setup, saving time and effort while maintaining precision and quality throughout the production process.
