Laser Tool Setter Introduction

In the field of precision machining, Laser Tool Setter is gradually becoming an indispensable tool. It triggers the signal through the change of the light beam between the laser transmitter and the receiver, and uses various software and macro programs to achieve accurate measurement of the tool.

Laser Tool Setter Parameters：

Item No.	DNC56	DNC86	DNC168
Tool Daimeter (Center)	Φ0.03-50	Φ0.03-80	Φ0.03-160
Tool Diameter (Tangent)	Φ0.03-60	Φ0.03-110	Φ0.03-320
Repeatability(2σ）	±0.1μm （up to controller）
General Complex Accuracy(2σ）	±1μm
Laser Type	power<1mW, wavelength 680nm
Laser Beam Alignment	With adjusting mounting plate
Supply Voltage	50mA @ 24VDC
Power Protection	Replaceable fuse
Output Signal	max currency 50mA, max voltage ±50V
Signal Output Mode	5m-8core shielded twisted pair，oil resistance
Pneumatic	4mm tube（43psi~87psi)
Life	>1 million cycles
Sealing	IP68
Body Material	Aviation aluminum
Storage Temperature	-10°C~70°C
Working Temperature	5°C~50°C

get a free qoute

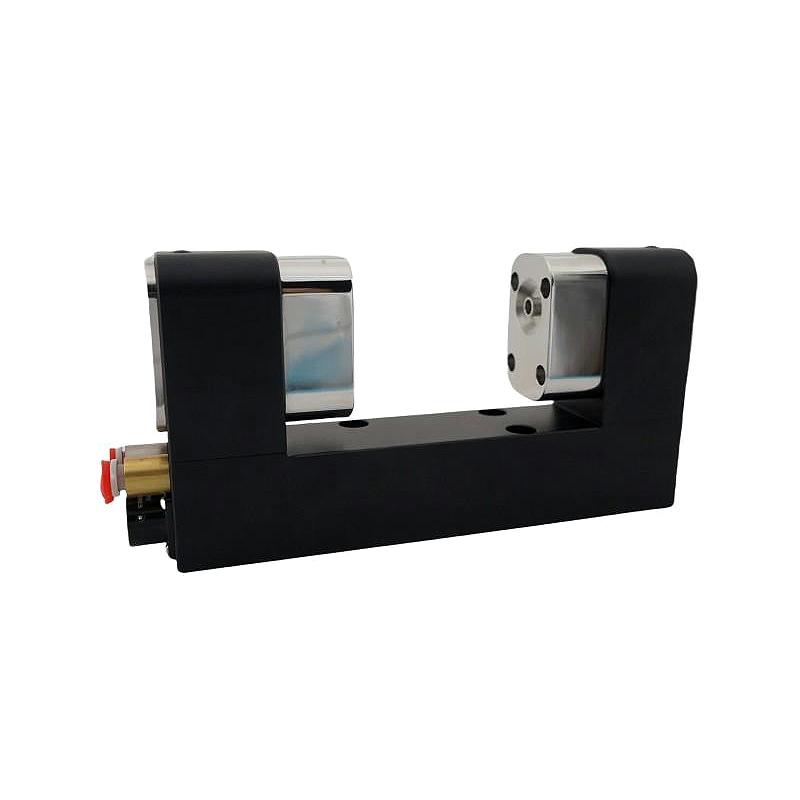

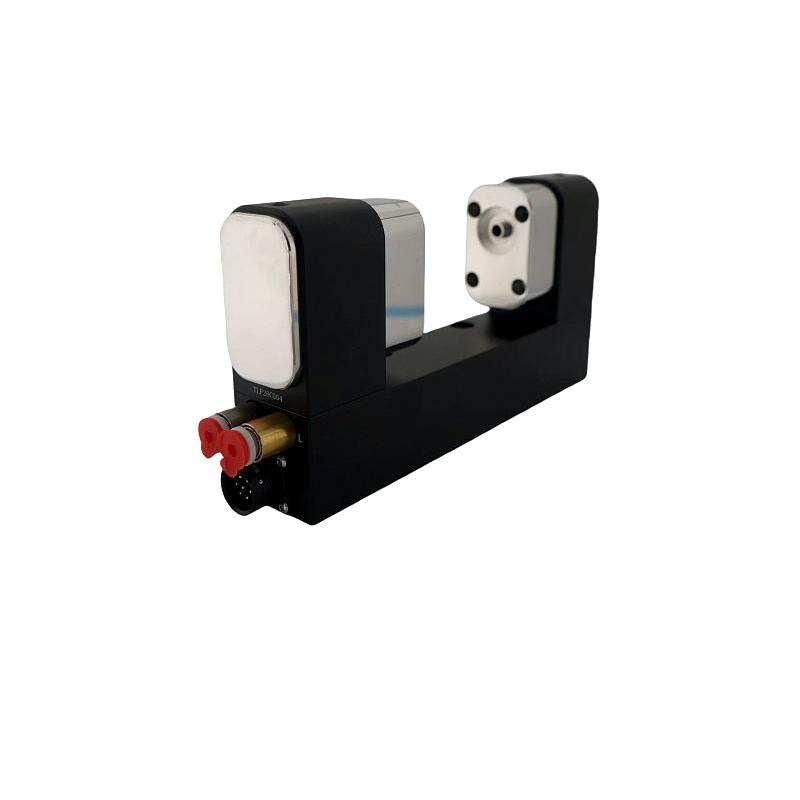

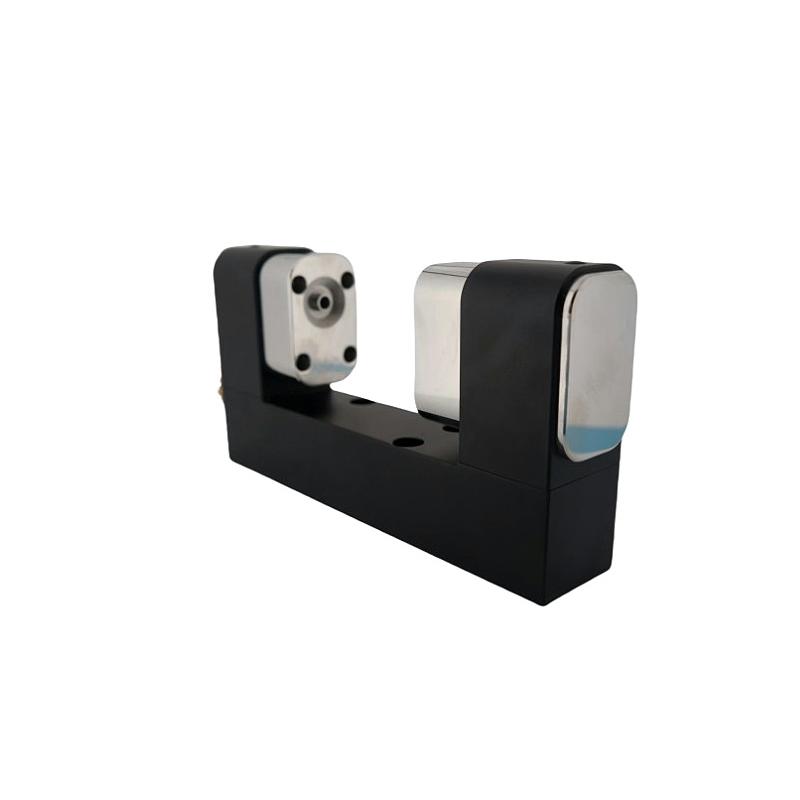

Functional advantages

Comprehensive detection: It can measure the length and diameter of the tool, monitor the wear and breakage of the tool, and detect the tool profile, especially suitable for special-shaped tools and multi-tooth tools.
High-precision measurement: It can detect tools with extremely small diameters. For example, some laser tool setting instruments can detect tools as small as 0.03mm or even finer. The repeat detection accuracy can reach ±0.1μm, which effectively guarantees the processing accuracy.
Thermal compensation function: It can compensate for the thermal deformation of the machine tool spindle to ensure the processing accuracy of the tool at different working temperatures.
Adapt to special tools: It can also detect super-hard tools, solving the problem of traditional contact tool setting instruments in measuring special tools.

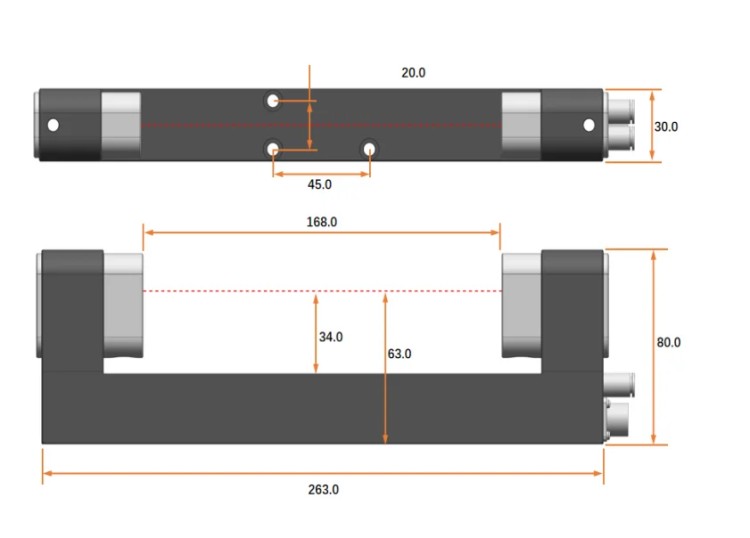

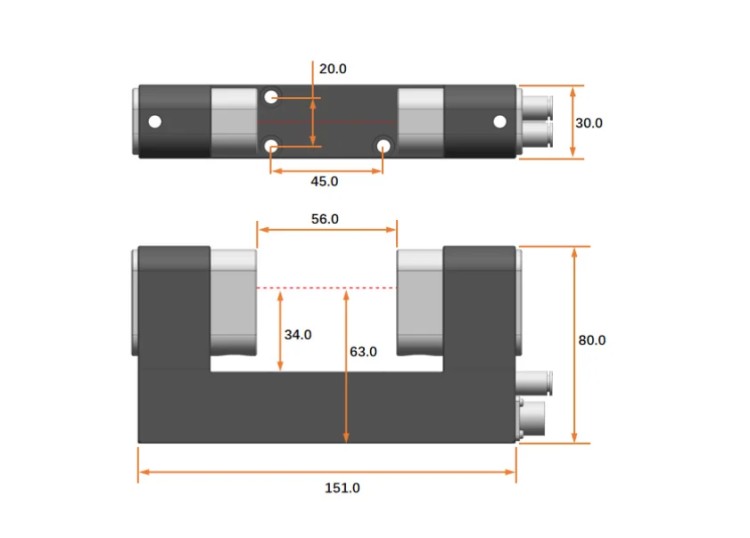

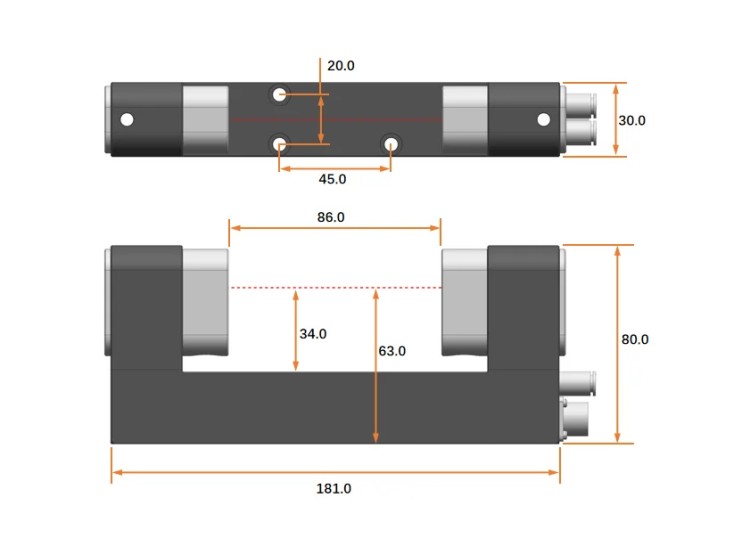

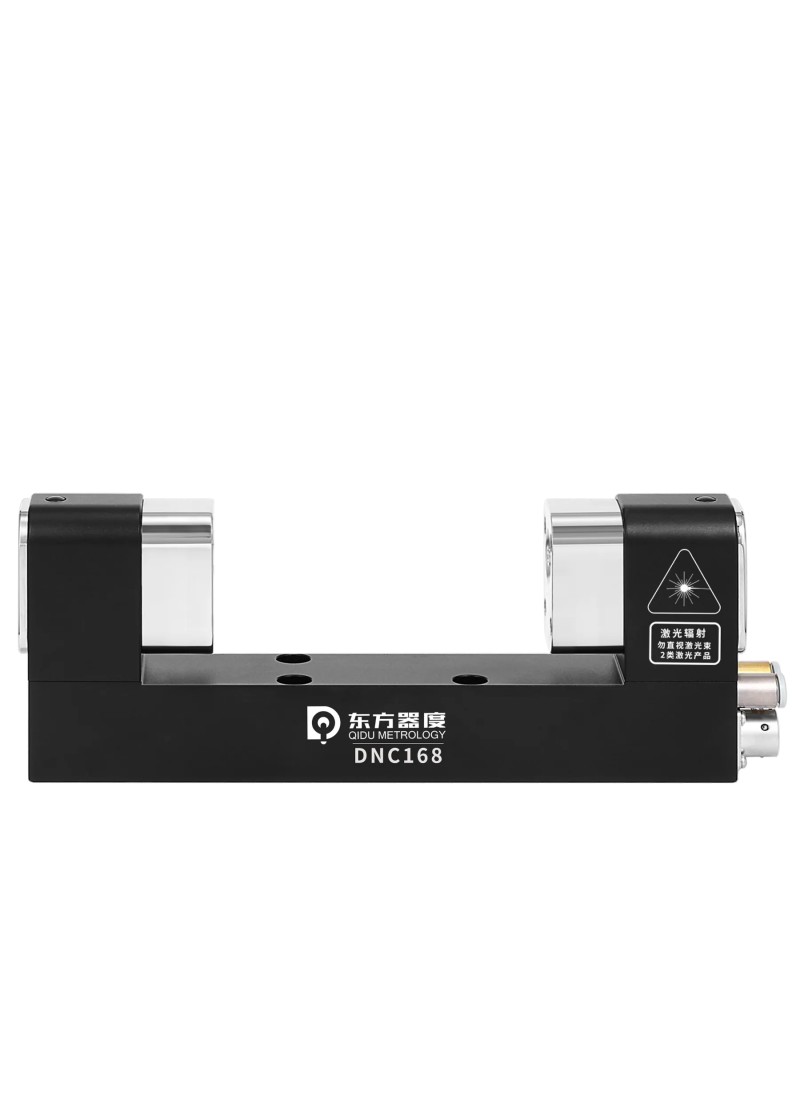

Different size for Laser Tool Setter Series

Features of Laser Tool Setter

High Precision

Highest repeatability（2σ） ≤ 0.1um
Comprehensive accuracy（2σ） ≤ 1um

High Stability

Laser trigger signal is used for stronger signal stability
Anti-drip function design, actively prevent false alarms

Non-contact measurement

Non-contact laser measurement, which won’t damage the tool
Measurable minimum tool diameter is 0.03mm

High Protection

IP68 for 10 meters water depth protection
Innovative two-tower independent safety protection system

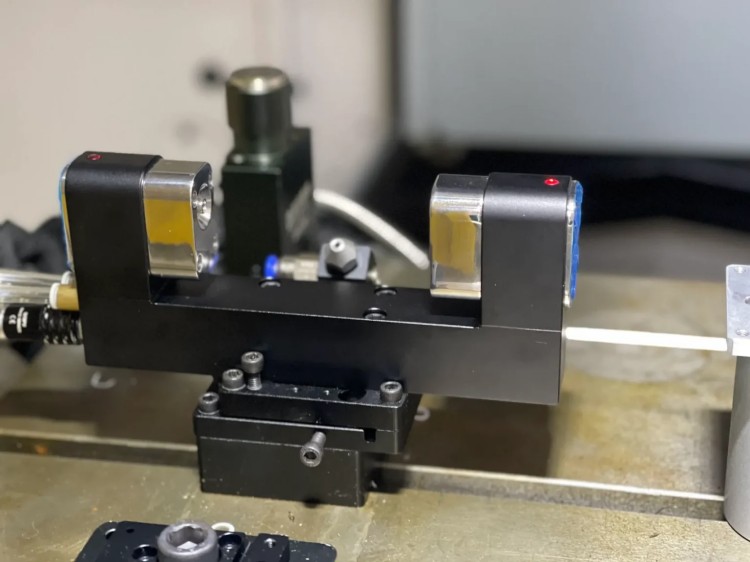

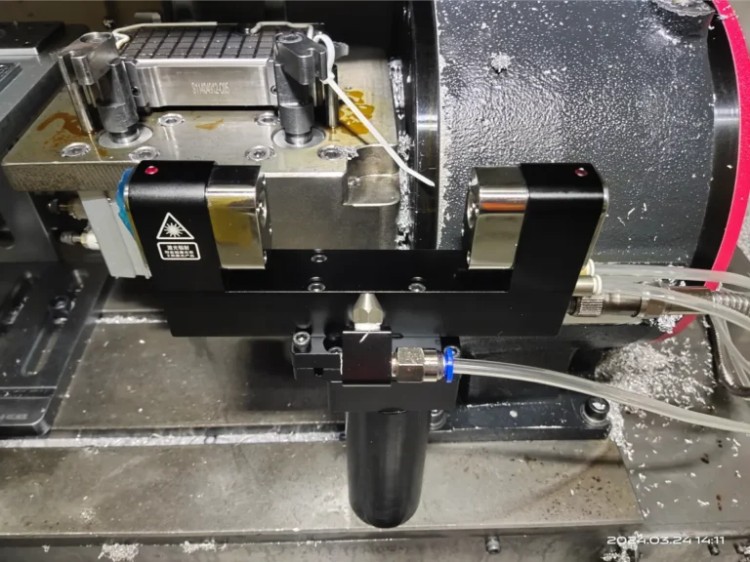

Important Design

Optical protection system: Given the harsh working environment of the laser tool setting instrument, cutting oil, cutting fluid and chips in the machine tool often interfere with the laser signal. To this end, through a unique mechanical sealing system, such as spring structure design, the optical system is only effective during measurement to prevent the optical device from being contaminated when the air source is turned off; at the same time, a continuous compressed air flow is used to pass through the precisely designed micro-laser holes, and the micro-holes are discharged at a certain speed to remove the coolant and chips entering the laser system, providing protection for the tool setting instrument.
Drip-proof design: Use software and programs to actively identify and filter the interference of water droplets, greatly reducing the probability of false alarms.
Compressed air drying protection device: Provide clean and dry air for the laser tool setting instrument system to prevent it from being contaminated by coolant and chips, and it is easy to install.

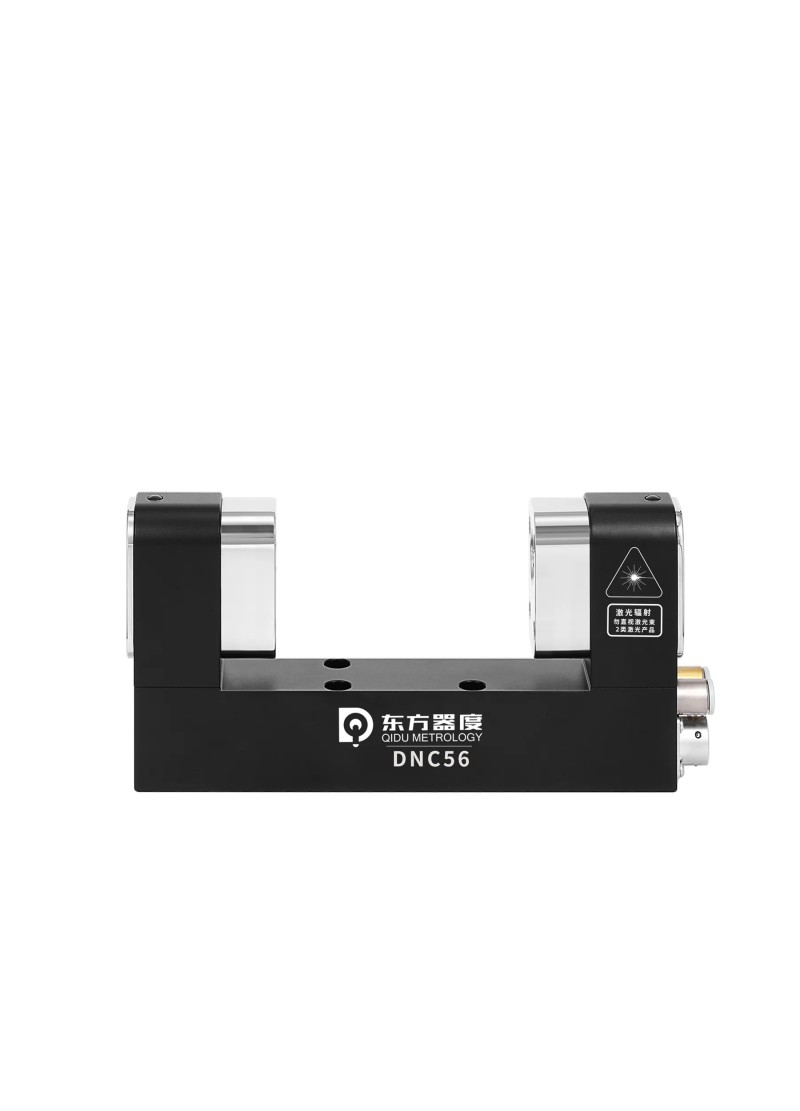

Laser Tool Setter

Multifunctional Laser Tool Setter for ±X ±Y ＋Z

Tool damage inspection
Tool length measurement
Tool radius measurement
Tool shape measurement
Tool shape monitoring
Single-edge cutting monitoring
Wear compensation
Axis compensation
Tool tip monitoring
Chamfer tool monitoring
Conical tool monitoring
