Features of Carbide 3D Touch Probe
1.High Precision
- Six-point high rigidity positioning technology
- Micron-level assembly control process
- Microsecond electronic control circuit
- Repeat positioning accuracy (2ω) <1um
2.High Stability
- ISO Qiality control system
- 12 design patent
- Micro-damping reset technology
- <1% repair rate
3.Ultra-low Power Consumption
- Ultra-low standby current
- Ultra-low trigger current
- Standby time>2 years
- Trigger times>2 million times
- Battery life is leading in the industry
4.Long Trigger Life
- Cemented carbide wear-resistant contact material
- Micron-level assembly control process
- Anti-carbonization and ultra-low coefficient of friction lubrication technology
- Trigger life >10 million times
5.Magnetic Universal Joint Technology
- The industry’s first powerful magnetic universal joint patented technology

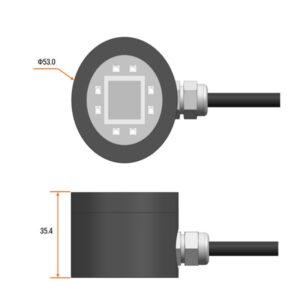

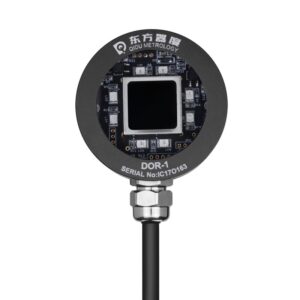

- Precise orientation and quick installation of the receiver
6.IP68 Protection Performance
- Anti-aging imported sealing material
- 100% of the finished product performs a 10-meter water depth sealing test

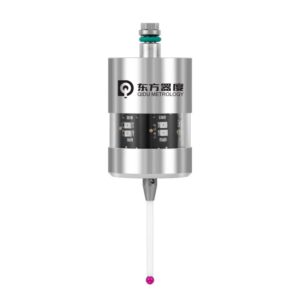

Description of Carbide 3D Touch Probe
A Carbide 3D touch probe is a high-precision measurement tool designed specifically for use with Carbide 3D CNC machines. It allows for accurate and reliable measurements within the CNC environment.
Key Features and Functions of Carbide 3D Touch Probe:
- Accurate Measurements: Provides precise measurements of workpiece dimensions and tool positions.
- Touchplate Calibration: Enables accurate calibration of the machine’s work coordinate system.
- Tool Length Measurement: Accurately determines the length of cutting tools.
- Workpiece Measurement: Measures the dimensions and positions of features on the workpiece.
- Improved Machining Accuracy: Minimizes errors in machining operations, leading to higher part quality and reduced scrap rates.
- Increased Productivity: Reduces setup time and improves overall machining efficiency.
How it Works:
- The touch probe is mounted on the machine’s spindle.
- The probe gently contacts the workpiece or a reference point.
- The machine’s control system records the position of the probe at the point of contact.
- This data is then used to accurately determine the position of the workpiece or the length of the tool.
Benefits of Using a Carbide 3D Touch Probe:
- Improved Accuracy: Higher precision in machining operations, resulting in better part quality.
- Reduced Scrap Rates: Minimizes the production of defective parts.
- Increased Productivity: Faster setup times and reduced downtime.
- Enhanced Process Control: Improved control over the machining process and overall efficiency.
By incorporating a Carbide 3D touch probe into your CNC machine, you can significantly enhance your machining capabilities and achieve higher levels of accuracy and efficiency.
